Product Details:
Every detail of the SubFreq™ Bass Trap was engineered to maximize performance in the lowest octave while maintaining broadband absorption throughout the frequency range.
At its core are two layers of complementary insulation:
6 inches of 4 lb/ft³ Rockwool Rockboard 40 for density and control
6 inches of low-density R19 fiberglass insulation, which excels at dissipating sound energy in deep porous absorbers
This dual-density composition, paired with an open-frame construction on all six sides, ensures full airflow and absorption from every direction, making SubFreq one of the most effective prefabricated bass traps available anywhere.
Even with its increased depth, SubFreq weighs roughly 30 pounds, thanks to a precision CNC-cut plywood frame designed for both rigidity and efficiency.
When installed with a 12-inch air gap, SubFreq maintains an NRC of 0.5 at 30 Hz and provides broadband absorption up through the entire audible frequency range, making it a true full-spectrum acoustic control solution.
What Makes the SubFreq™ Unique?
✓ 12½” deep broadband porous absorber
✓ Dual-density insulation system for extended low-frequency absorption
✓ Open-frame design for absorption on all six sides
✓ 4’x2’ CNC-cut plywood frame for strength and precision

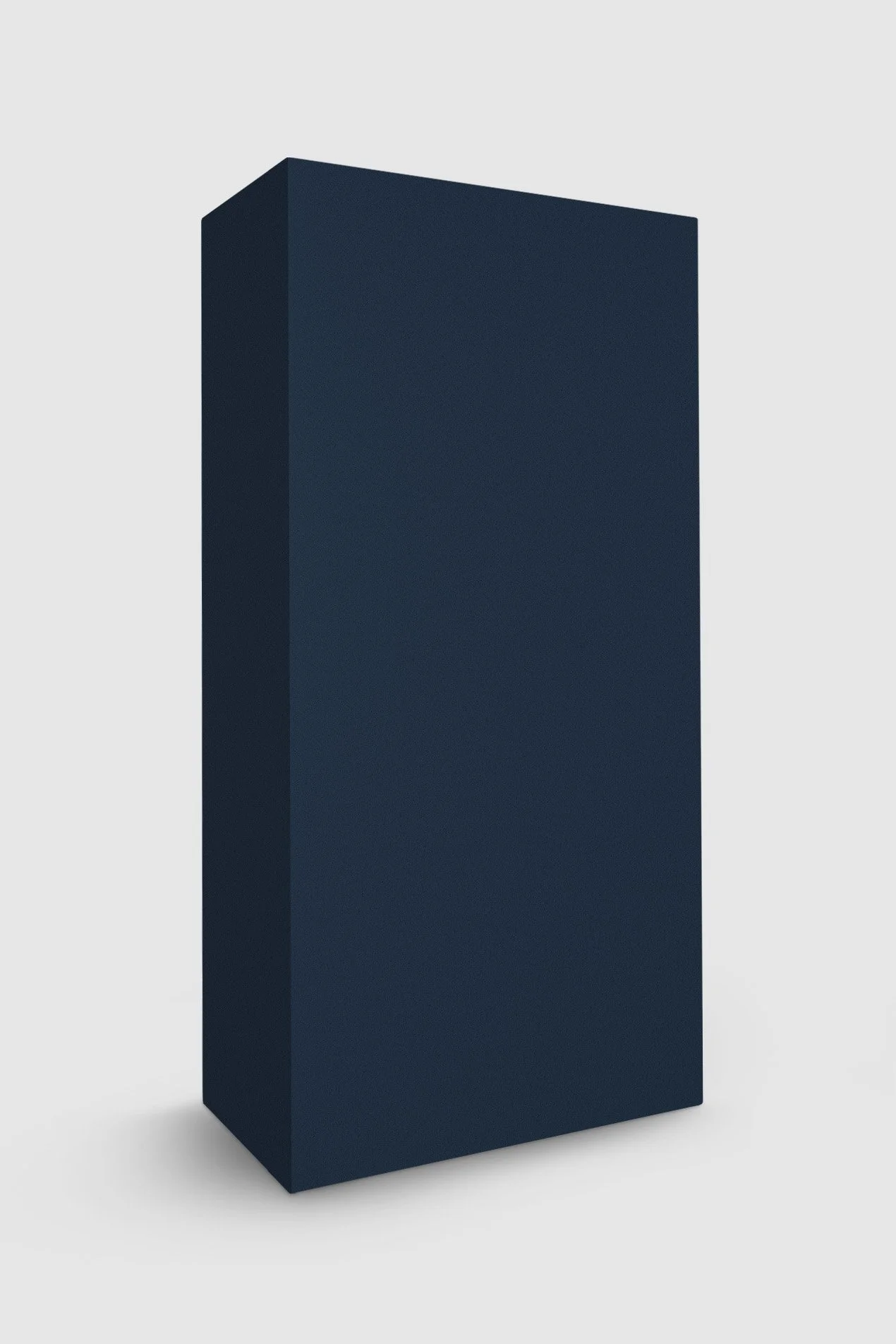

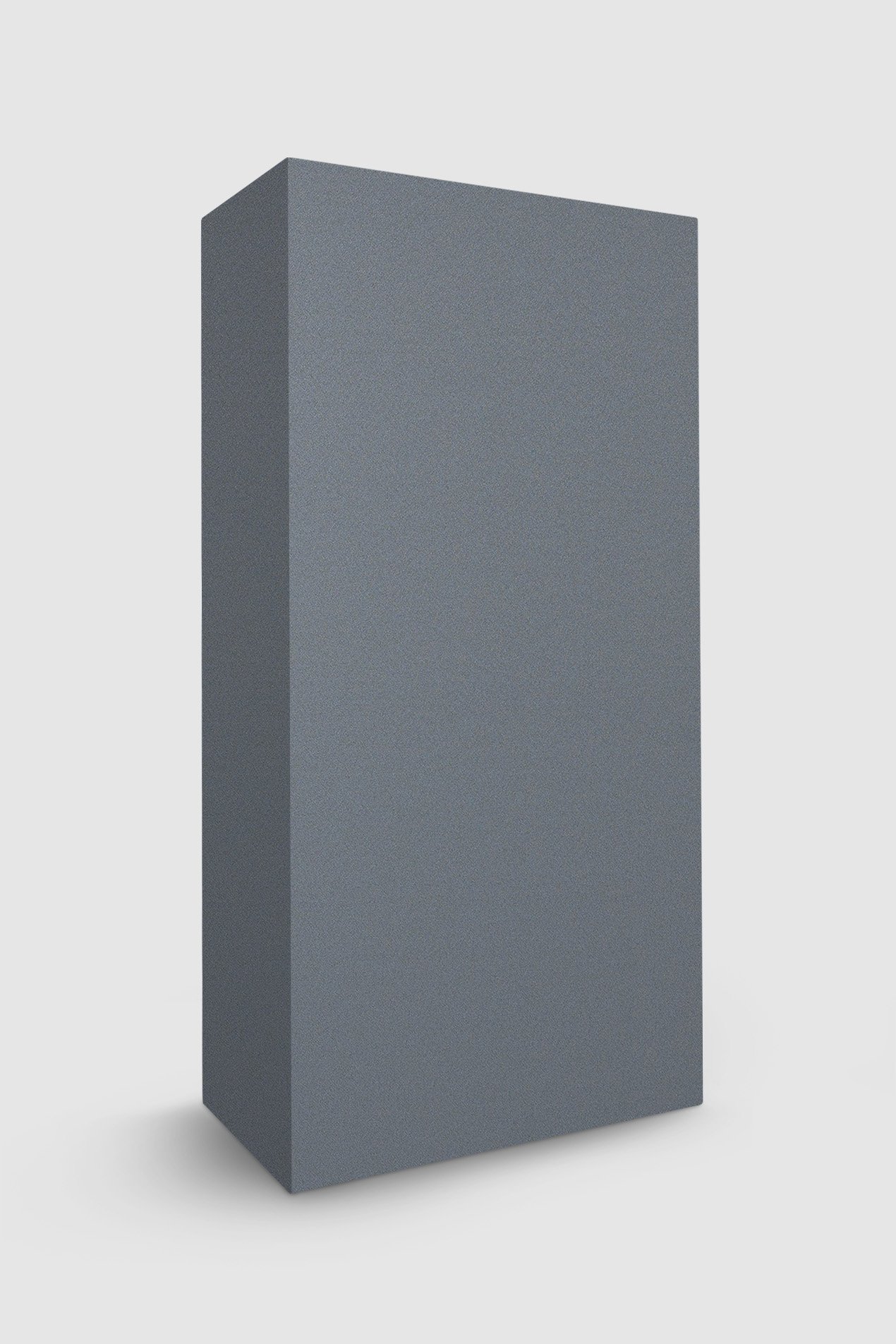

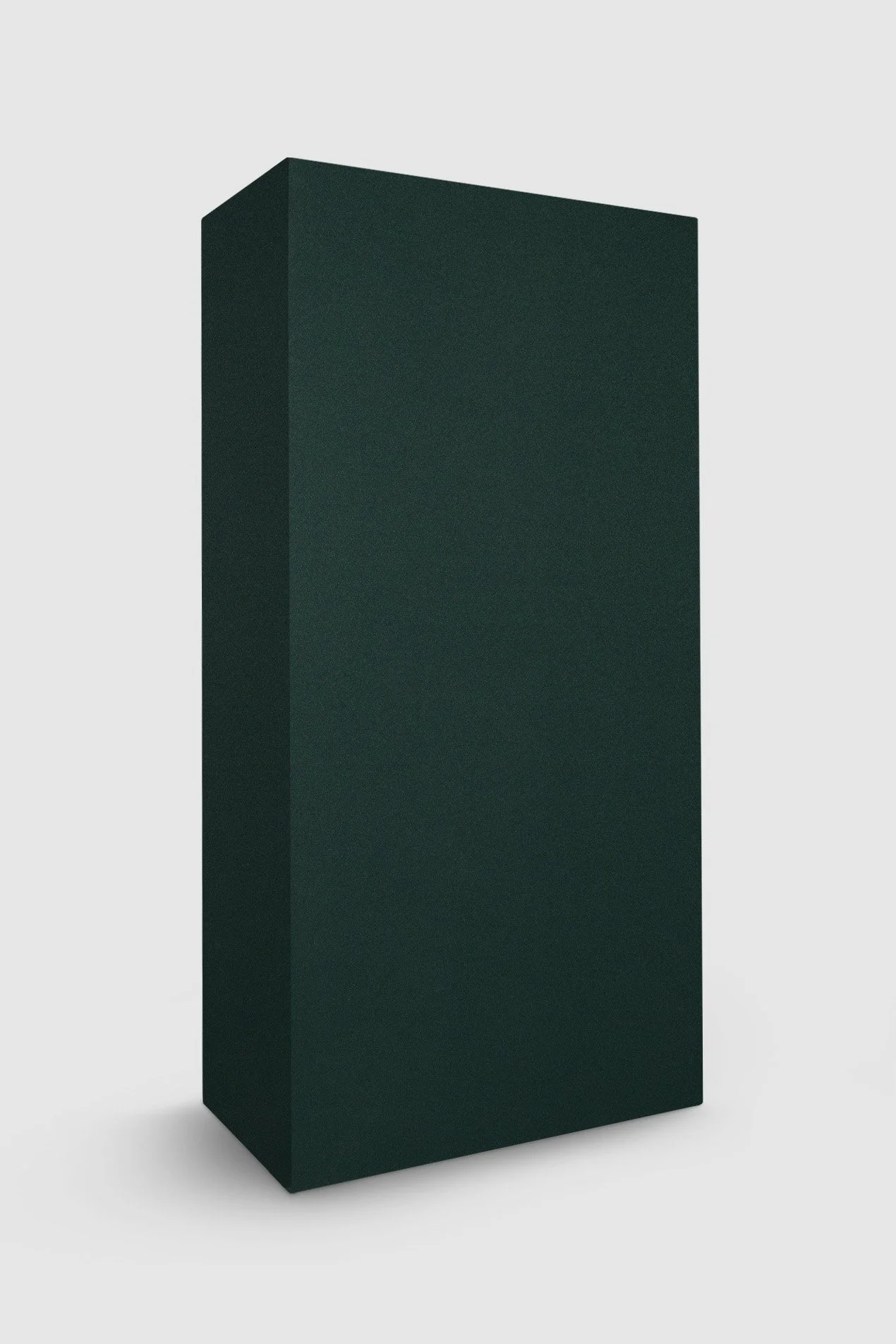

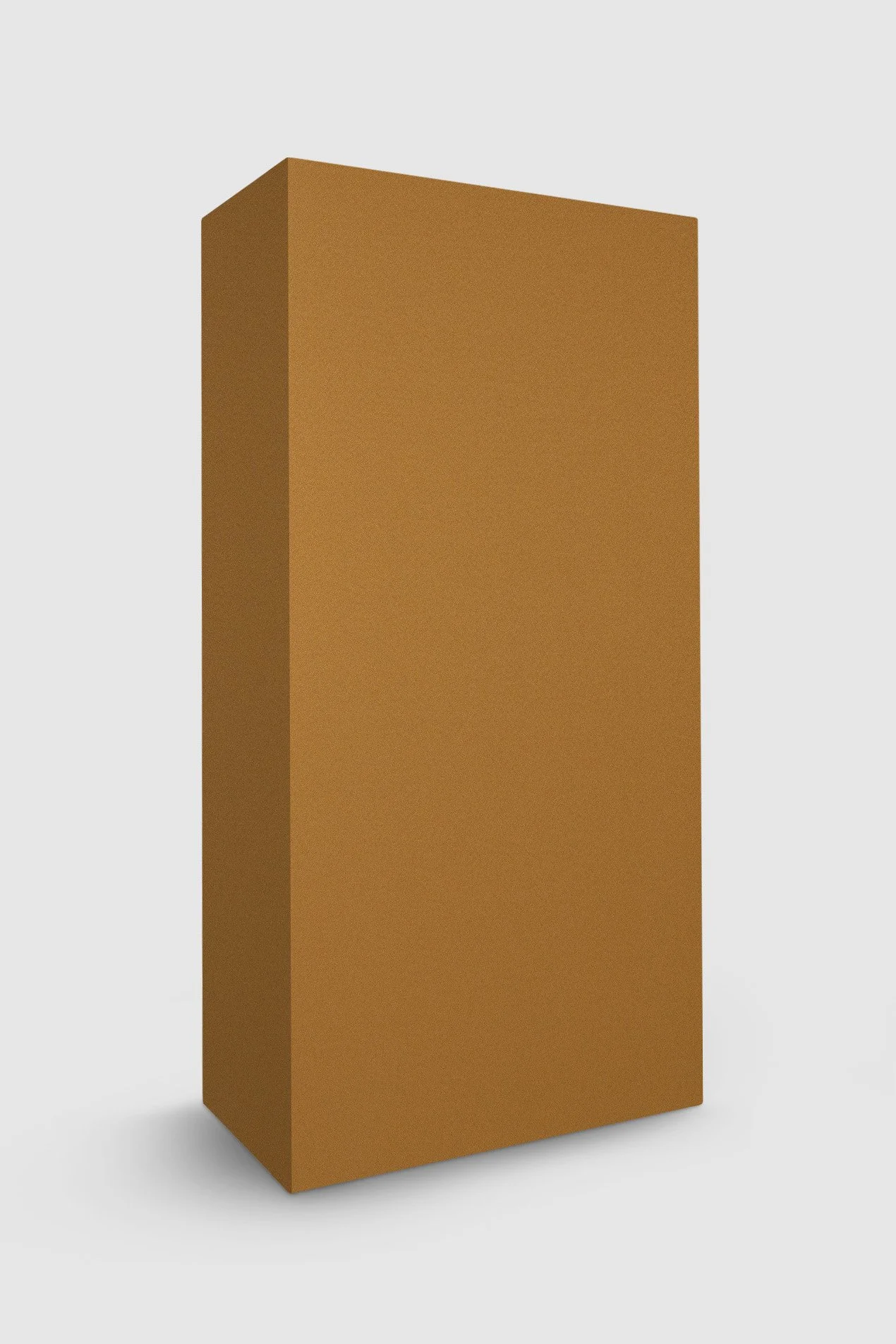

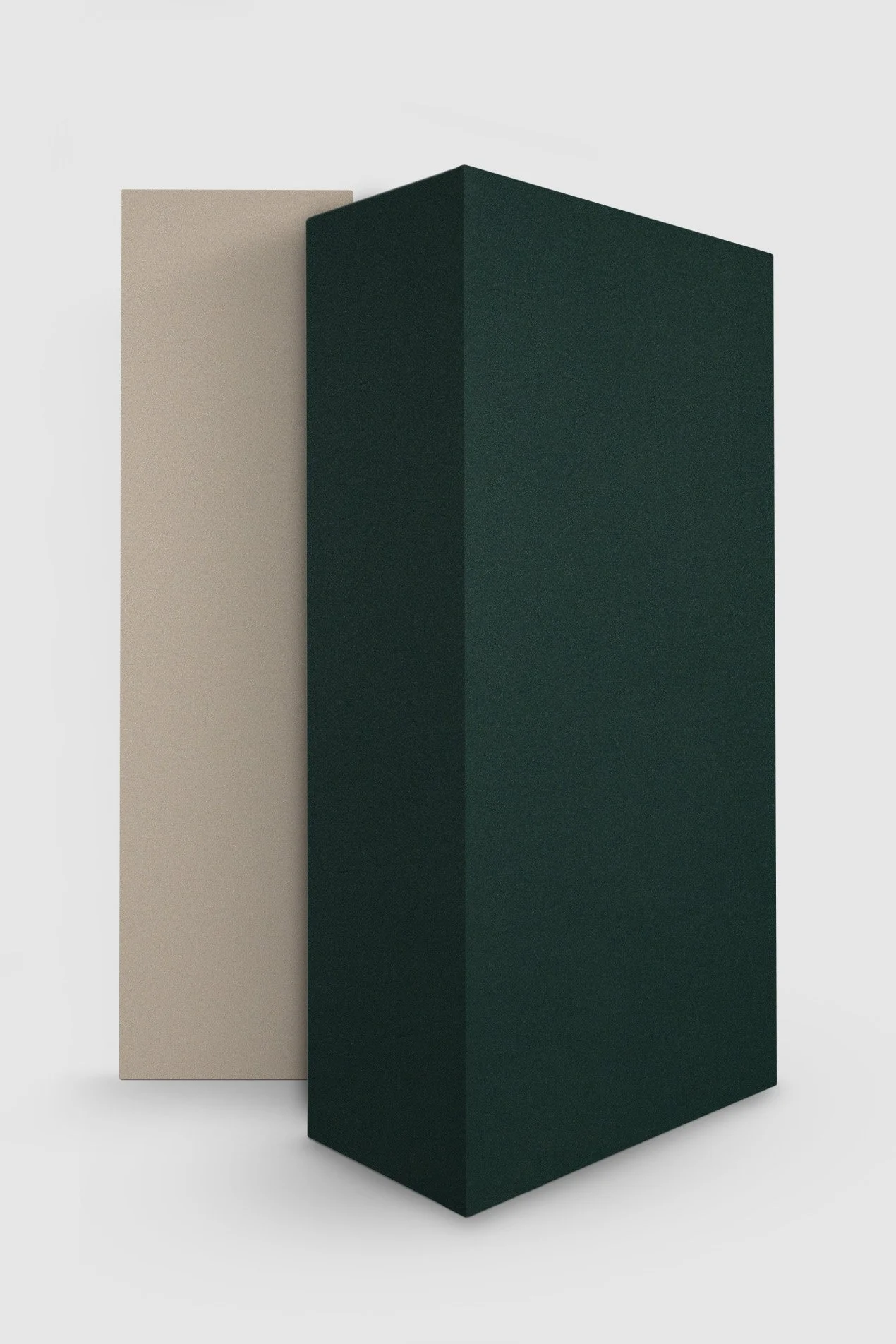

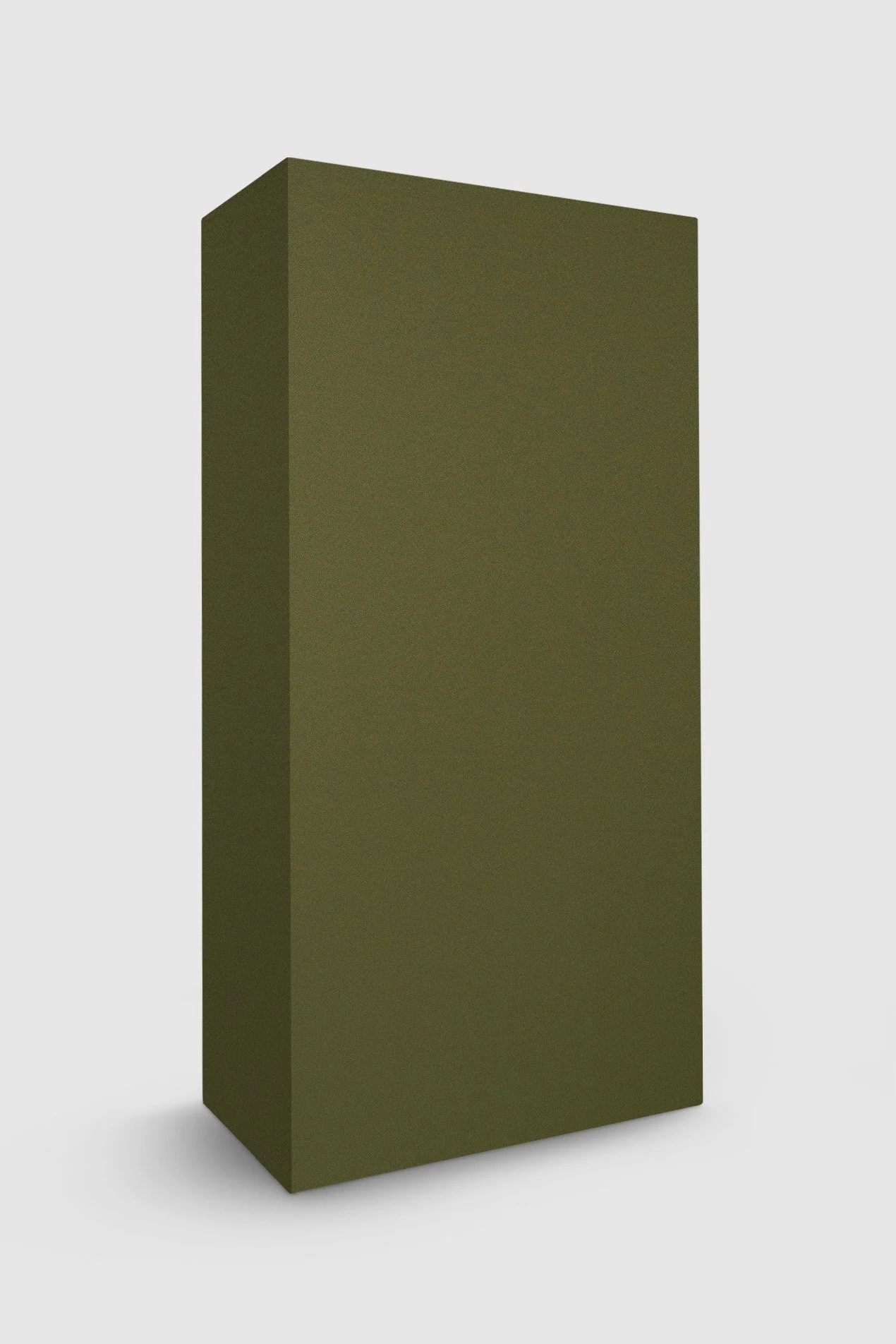

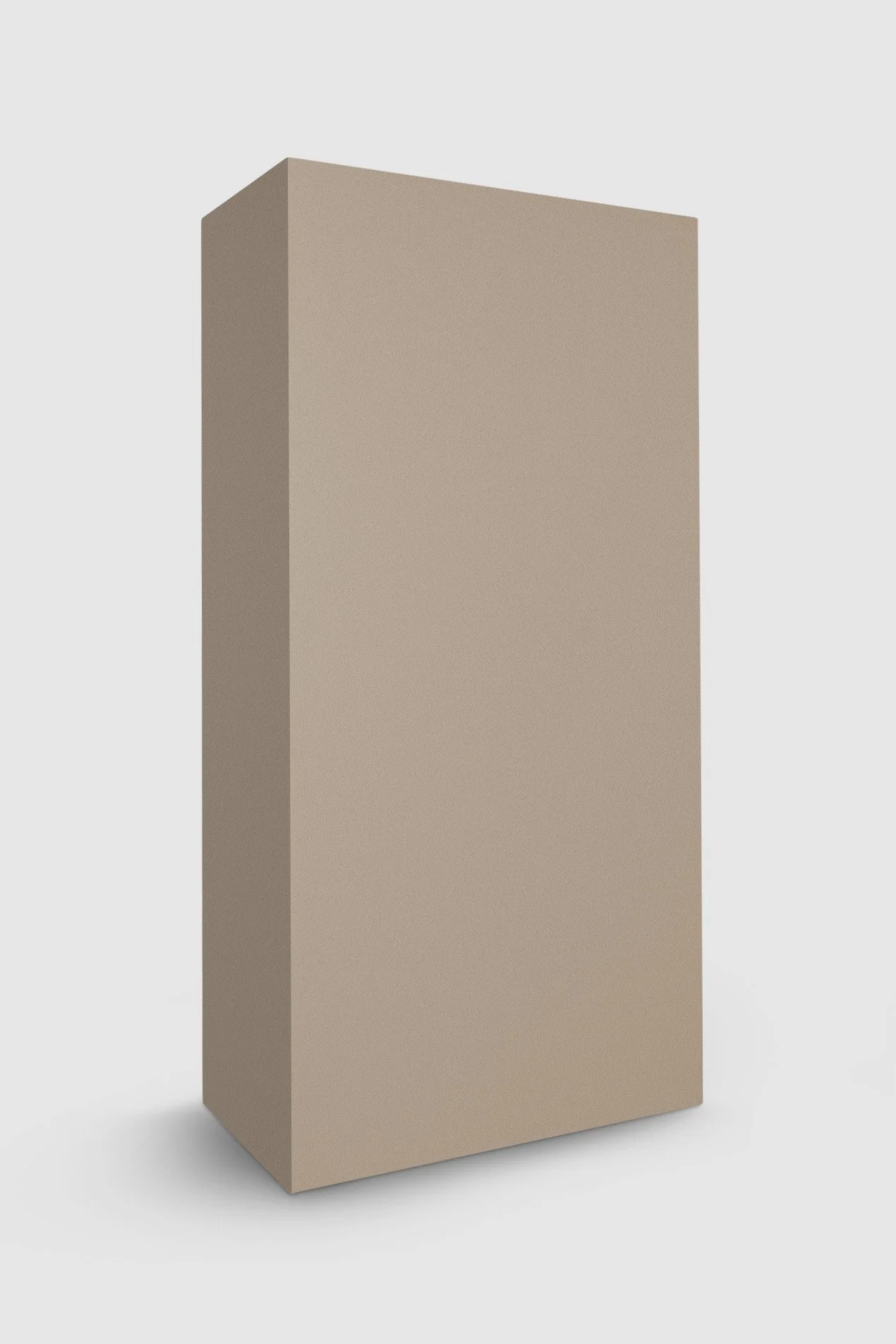

✓ Available in 15 Burch & Guilford of Maine Anchorage fabric colors
✓ Fire-rated, tested, and certified materials
✓ Easy wall, ceiling, or corner mounting options
✓ Hardware included for quick installation
✓ Handmade in Nashville, TN, by musicians and engineers
Applications:
The LowFreq Bass Trap was designed for rooms where accuracy and control are non-negotiable.
Mixing & Mastering Rooms
Experience balanced, trustworthy low-end response so you can make confident mix decisions. LowFreq eliminates modal ringing and standing waves that compromise low-frequency translation.
Hi-Fi & Listening Rooms
Bring out the true character of your speakers, amplifiers, and recordings. SubFreq allows you to hear the lowest octaves clearly without masking detail or warmth, revealing nuances you have never heard before.
Home Theaters
Create cinematic impact and immersion without sacrificing clarity. SubFreq enhances definition and punch while taming unwanted boominess in the lowest registers.
FAQs:
-
SubFreq combines dual-density insulation with a fully open six-sided frame. This design maximizes airflow and energy dissipation, providing exceptional low-end absorption that extends down to 30 Hz.
-
No. While SubFreq was designed for professional mixing and mastering environments, it also excels in hi-fi listening rooms and home theaters where precise, natural bass response is desired.
-
Each panel comes equipped with 2” Z-Clips for wall mounting. Corner and ceiling installations can be achieved using our optional hardware kits. An air gap of 6–12 inches is recommended for the best performance.
-
Despite its depth, each SubFreq weighs approximately 30 pounds thanks to its lightweight, precision-cut plywood frame and optimized internal structure.
